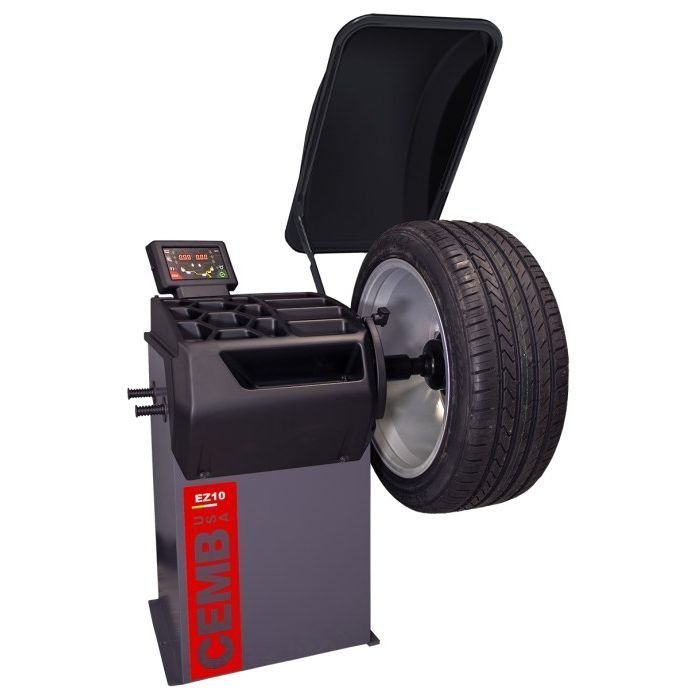

CEMB EZ10 3D Data Entry Wheel Balancer
$2,970.00
50 in stock
The EZ10 blends existing technical features such as Auto Adaptive mode and Virtual Sonar – with the addition of an electromagnetic brake, which eases operations for counterweight application makes this space-saving wheel balancer unbeatable.
The EZ10 is a Space-Saver wheel balancer, with exclusive direct weight placement. 3D inner data entry arm uses 3D Virtual Sonar and AutoAdaptive enhancement software to provide a faster, higher quality wheel balance service. Eliminates the time and hassle of caliper rim width data entry. Motorized, fast 5-second average cycle time.
AutoAdaptive Mode – The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration. For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving, and together with OPB Program, saves balancing time.
Virtual Sonar is the new CEMB software for a 3D wheel measurement which enables, in the absence of an actual sonar device, to detect the rim width. After having detected the first correction plane thanks to the automatic gauge, Virtual Sonar calculates the position of the external plane, according to the measured unbalance and the tolerance calculated with AutoAdaptive mode.
Heavy Duty – The entire range of CEMB balancers is manufactured to the strict high standards imposed by the company. Heavy duty batch balancing use doesn’t hamper even the smallest of CEMB balancers. Thanks to this sturdiness, the choice of an appropriate model is not subject to intensity of use but only to service requested. Each model differs from the other in levels of process automation and analysis capability effect on wheel.
Features and Specs
- AutoAdaptive Mode
- Virtual Sonar
- Automatic Gauge
- Multi-Function LED Display Panel
- Manual Locking
- Electro-Magnetic Brake
- Fast 5-Second Cycle Time
- Quick Clamping Wing Nut
Specifications
- Power Supply: 110V, 1ph, 50/60Hz
- Wheel Clamping Type: Manual
- Balancing Speed: 100 rpm
- Maximum Rim Diameter: 30″ (765mm)
- Maximum Rim Width: 20″ (510mm)
- Maximum Tire Diameter: 36″ (914mm)
- Max Wheel Weight: 165 lbs. (75kg)
- Machine Weight: 265 lbs. (120kg)

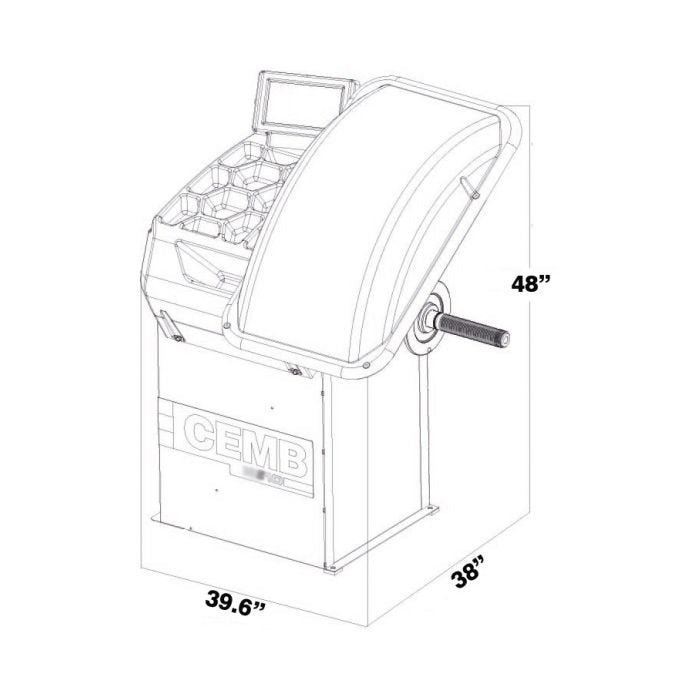

- Machine Dimensions: 39.6″ W x 48″ H x 38″ D
- Shipping Weight: 280 lbs. (127kg)
