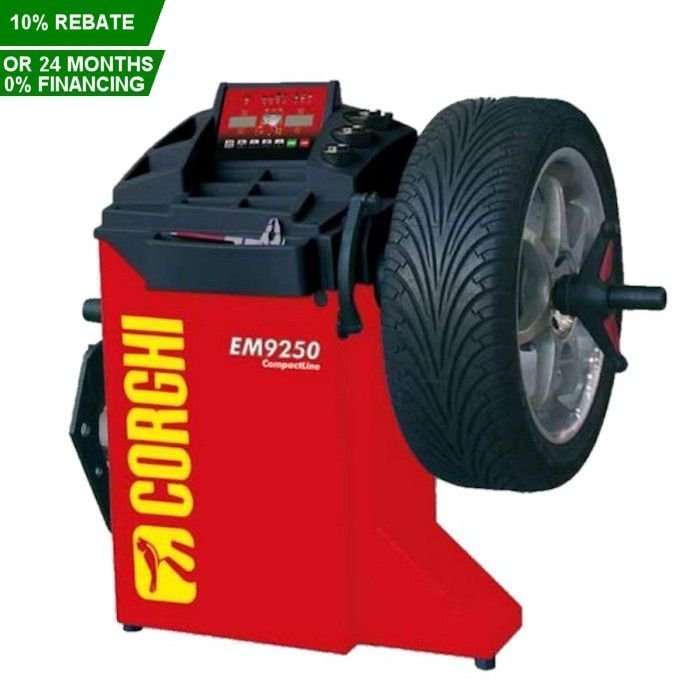

Corghi EM9250 Professional Wheel Balancer
$3,150.00
50 in stock
Corghi EM9250 Professional Wheel Balancer | CompactLine
The Corghi EM9250 is a professional wheel balancer with a easy to read double digital display for reliable wheel balancing.
Display
A double display control panel enables a quick and intuitive selection of the balancing mode and immediate access to the most common operating functions.
Weight Tray
Weight tray ergonomic and functional, it features many large tray to house all different types of weights and the various tools.
Spin Unit
Spin unit derives from the superior models of the B-Series and provides functional features typical of the upper models: reduced cycle time, measuring wheels weighing up to 165.3 lbs. and wheel balancing with inside offset of up to 10.8″ without using additional spacer. The innovative drive and zero maintenance ensure maximum reliability.
Wheel Dimension Detection
Electronic input of wheel diameter and distance with FSP function which automatically activates the balancing programmes, avoiding keypad selection (*). Three modes to position the adhesive weights: with the weight holfer clip (*), with the 6 o’clock laser indicator (*) or manually at 12 o’clock.
Hidden Weight
It keeps rims looking great by dividing the external side balancing adhesive weight into two equivalent weights applied in hidden locations behind the spokes.
Opt Flash
Minimises road noise by allowing the operator to alter the position of the tire on the rim in order to optimise quietness.
Automatic Positioning and LED Illuminator
LED spotlight to light-up the work area and make it easier to clean the rim, check the wheel and apply weights. The adhesive weights can be positioned extremely rapidly using the laser pointer at 6 o’clock.
Support Base
Front support base for balancing wheels up to 110.2 lbs. without fastening the machine to the ground.
Features and Specs
Features
- Double Display Digital Control Panel
- Smart Arm FSP
- Wheel Dimension Detection
- AWC – Auto Width Calculation
- Automatic Positioning
- LED Illuminator and Laser Light
- Front Support Base
- Ergonomic and Functional Weight Tray
- Hidden Weight for Hiding Weights Behind Spokes
Specifications
- Power Supply Voltage: 230V / 1ph / 50hz, 115V / 1ph/ 60hz
- Total Power Absorption: 100 W
- Spinning Speed: 90-130 rpm
- Max. Unbalance Value Calculated: 999 g
- Unbalance Measurement Accuracy: 1 g
- Average Measurement Time: 7 s
- Shaft Diameter: 40 mm / 1.57″
- Rim Width Setting Range: 1.5″-20″
- Rim Diameter Setting Range: 1″-35″
- Rim Diameter Measurement Range: 10″-28″
- Max. Wheel Width: 23.6″ / 600 mm
- Max. Wheel Diameter: 44″ / 1117 mm
- Max. Wheel/Machine Distance: 10.82″ / 275 mm
- Max. Wheel Weight: 165 lbs. / 75 kg
- Machine Weight: 174.2 lbs. / 79 kg
- Warranty: (3) Years Parts and (1) Year Labor
Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Corghi machines are warranted to be free of defects as follows:
Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 – (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 – (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 – (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 – (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 – (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs – (90) day warranty.
Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 – (3) years parts and (1) year labor.
Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner’s lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
