20 Ton Horizontal Vertical Tractor 3pt Log Splitter (3PT20HV)
$1,011.60
50 in stock
Product Description
Limited Time Free Shipping!
3 Point 20 Ton Horizontal Vertical Tractor Wood Splitter

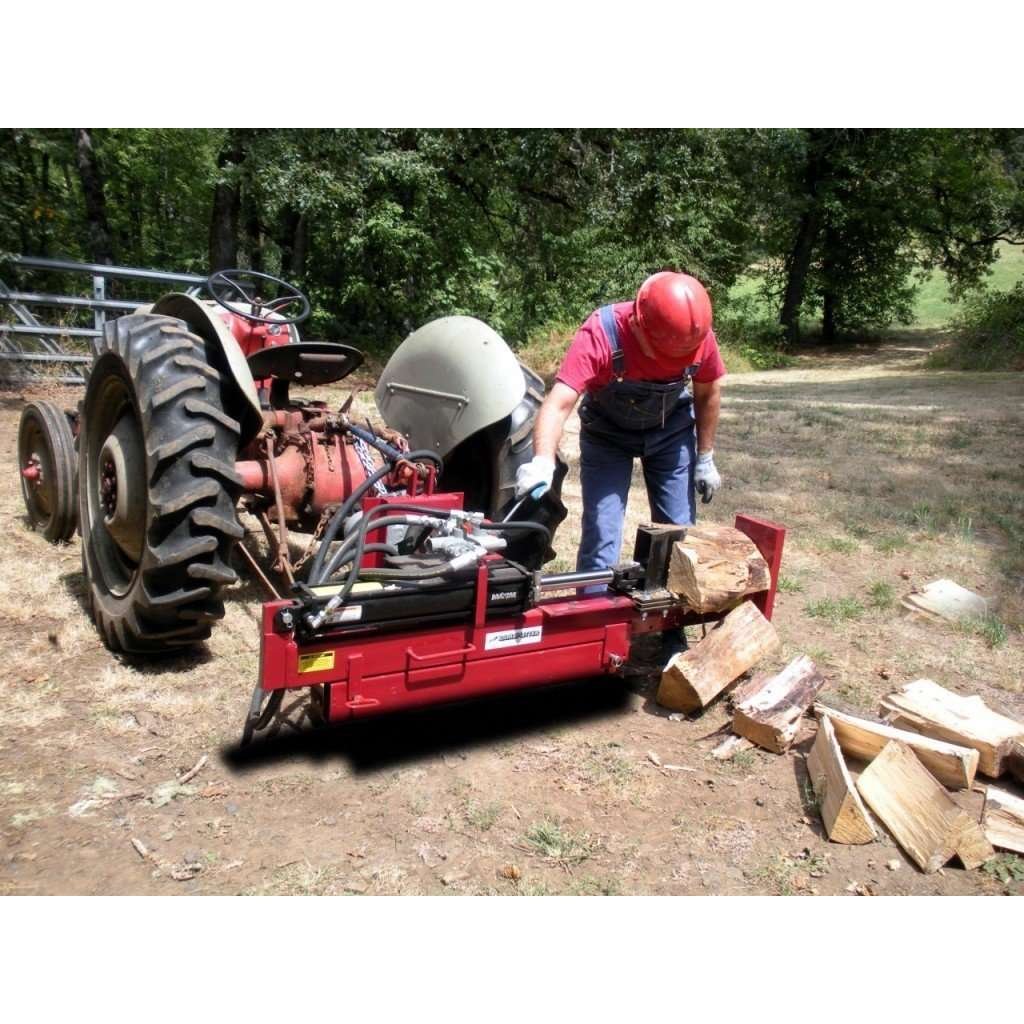

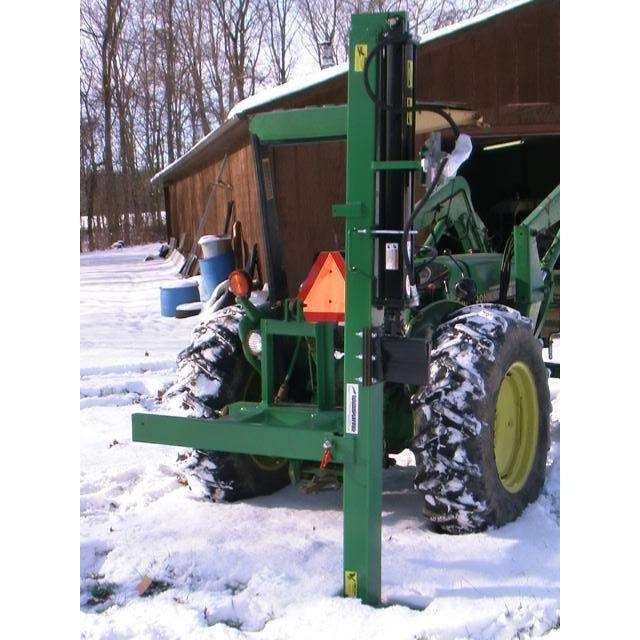

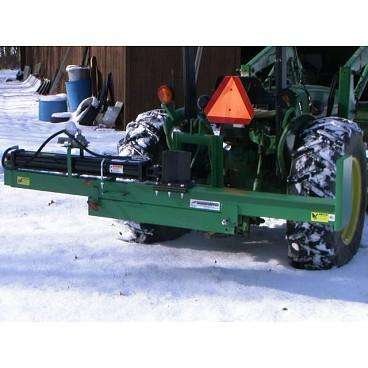

Our 20 ton (3PT20HV) HV log splitter for tractors made by Ram Splitter have become a popular choice over the years. This 3 point log splitter unit will split both in the horizontal and vertical position for those large rounds you really don’t feel like lugging up on the beam.
The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included. Top link pins or anything else that is related to your tractor for hardware are not included. All connections including hoses are included with PTO kits.
It is recommended that you have a flow rate of 7.5GPM or higher for this log splitter. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump. Tractor required to be 25hp or higher to run PTO kits. Please see options.
This log splitter is fully customizable with several options:
Color Choice – At no additional cost you get to choose your color: Black, Kubota orange, John Deere green or Ford blue.
PTO Kit – PTO (Power Take Off) kit runs completely off your PTO on your tractor. There is no need to worry about any of your hydraulics as this system is self contained which includes a tank and a 21GPM PTO pump. Hook up the pump to the PTO, fill the tank with fluids and your ready to split wood. This PTO pump is designed for 540RPM at the PTO. 25HP minimum tractor required.
4 Way Wedge – Split logs into 4 pieces. 4 way wedge just slips over the existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 3″. Split one log once instead of 3 times to get 4 pieces.
Log Cradles – HV units catch falling wood saving you from bending over and picking up split wood off the ground and splitting again. Just imagine the amount of extra times you could save from bending over picking up firewood to split again from each cord of wood? (Tip: If you don’t get get log cradles at least make a table to catch that wood!)
Opening Size – The standard opening size on this unit is 26″. The cylinder stroke is 24″ making it a 4″ x 24″ cylinder. Looking for a bigger opening for that wood boiler or stove that can take larger pieces? We offer a 4″ x 30″ (32″ opening). Less cuts, less splits.
- “Deadman” switch stops the ram when the handle is released
- Control Valve locks into return and auto-returns
- Built in Relief valve protects the hydraulic system
- Solid Rectangular Tube Design eliminates twisting and bending
- ONE YEAR WARRANTY ON ALL PARTS, MADE IN THE USA!
See options above the big green “add to cart” button for pricing and pictures. As you select them it will built and price your splitter as you go! Questions? Feel free to contact us at 888-706-2434 for no hassle no pressure help and advice. We are here to help.
Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.
